Product Description:

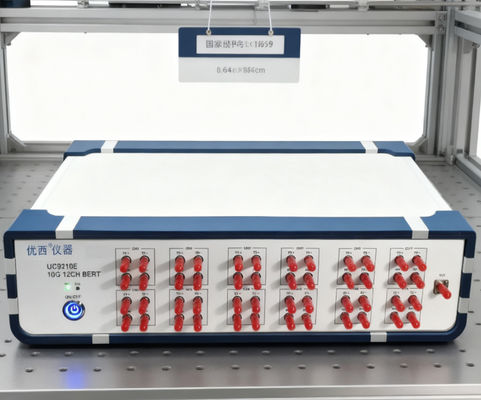

The BERT Tester is a high-quality testing device designed to meet the needs of modern data communication systems. This advanced piece of equipment is manufactured in China, ensuring quality and reliability in every unit produced.
One of the key features of the BERT Tester is its precise data output jitter (RMS) of 1.5 (10.3125G Down)ps. This level of accuracy ensures that your data transmission is stable and consistent, crucial for the efficiency of your communication system.
Constructed with durable metal material, the BERT Tester is built to last and withstand the demands of testing environments. The robust construction guarantees a long lifespan, making it a cost-effective solution for your testing needs.
With a data rate ranging from 622M up to 15Gbps, the BERT Tester is capable of handling a wide range of data transmission speeds. Whether you are working with lower data rates or pushing the limits with high-speed transmissions, this versatile tester can accommodate your requirements.
Technical Parameters:
| No. |
parameter
|
minimum
|
typical
|
maximum
|
unit
|
| 1 |
Data rate
|
0.622 |
0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 |
15 |
Gbps |
| 2 |
Code type
|
|
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 |
|
|
| 3 |
Rise and fall time (20% to 80%)
|
|
18 |
23 |
ps |
| 4 |
Pattern reversal
|
|
Supports signal reversal at the receiving end
|
|
|
| 5 |
Signal output amplitude (single-ended)
|
200 |
800 |
1000 |
mV |
| 6 |
Data output jitter (RMS)
|
|
1.5 (10.3125G down)
|
|
ps |
| 7 |
Data input/output interface
|
|
Differential, AC coupling, 50 ohm impedance, SMA
|
|
|
| 8 |
Clock output
|
100 |
156.25 |
156.25 |
MHz |
| 9 |
Data signal input sensitivity (single-ended)
|
|
0.1 |
|
Vpp |
| 10 |
Data output eye graph intersections
|
50 |
52 |
54 |
% |
| 11 |
Operating temperature
|
10 |
25 |
50 |
°C |
Applications:
When it comes to testing and evaluating the quality of high-speed communication systems, the YOUCii BERT Tester U9210E is the go-to solution. This advanced testing equipment, originating from China, is designed to meet the demands of various industries and applications requiring precise data rate measurements.
The YOUCii BERT Tester U9210E is capable of handling data rates from 622M up to 15Gbps, making it suitable for a wide range of high-speed communication systems. With rise and fall times ranging from 18 to 23ps, this BERT Tester ensures accurate and reliable testing results for different scenarios.
Whether you are working in telecommunications, networking, or semiconductor industries, the YOUCii BERT Tester U9210E provides a reliable solution for testing data output jitter. With an RMS jitter of 1.5ps at 10.3125Gbps downlink speed, this tester helps you identify and address jitter issues efficiently.
