Product Description:
Optical power meters are important tools for accurately measuring optical power levels in optical fiber networks. With its multi-functionality and reliable performance, this power meter is an essential item for technicians, installers and network engineers.
Calibration: The optical power meter can be calibrated in the factory or on-site to ensure accurate and consistent measurements in various Settings.
Power supply: This power meter can be used for mobile measurement with a battery or for continuous operation at a fixed position with an AC adapter.
Measurement range: The optical power meter has a wide measurement range from +5 to -75 dBm, allowing for precise readings at various power levels.
With its high precision and fast response time, this power meter is an ideal choice for testing optical fiber cables, components and networks. It can measure power levels at different wavelengths, making it suitable for a wide range of applications.
U8724/8 technical specification:
| Model # |
U8724/8A |
U8724/8B |
U8724/8C |
| Sensor Element |
InGaAs |
| Wavelength Range |
850 ~ 1700 nm |
| Calibration Wavelength |
850/980/1310/1490/1550/1610 nm |
1510~1625 nm Continuous calibration
|
| Power Range |
+10 ~ -65dBm |
+25~-55dBm |
+5~-75dBm |
| Sampling period |
100us (10KHz) |
10 us (100KHz) |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
| Uncertainty (accuracy) |
± 4% (1200 nm ~ 1610 nm) |
| Relative Uncertainty (accuracy) |
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) |
| Return Loss |
＞40 dB |
| Communication Interface |
RS232, USB,Control by PC |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
235 mm W, 55mm H, 320 mm D |
| Weight |
3.0 kg |
Applications:

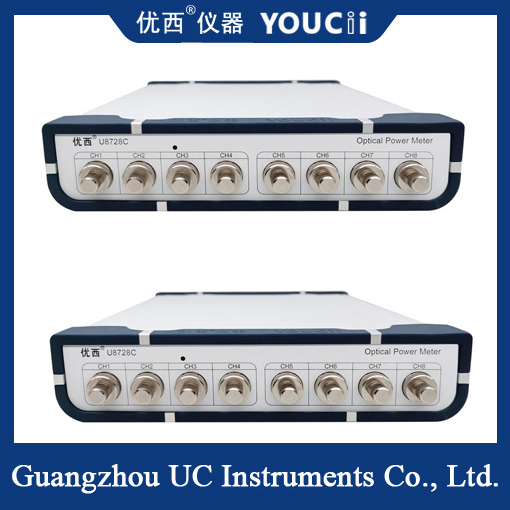

One of the main features of the U8728C is that it is compatible with multiple connector types, including FC, SC and LC. This flexibility enables users to easily connect the power meter to different types of optical fibers, making it an ideal choice for various optical networks.
Whether you need to measure optical power in a laboratory environment or on-site, the U8728C offers convenient data interface options such as USB and RS232. This achieves seamless data transmission and analysis, making it a reliable tool for professionals in the optical communication industry.
The measurement range of +5 to -75 DBM makes the UQ U8728C suitable for various power levels, ensuring accurate readings in different scenarios.
In conclusion, the U8728C optical power meter is a reliable and versatile tool that can meet a wide range of product application scenarios and scenarios. With its comprehensive functions, including a wide power range, multiple connector options and convenient data interfaces, this power meter is a valuable asset for professionals in the optical communication industry.
