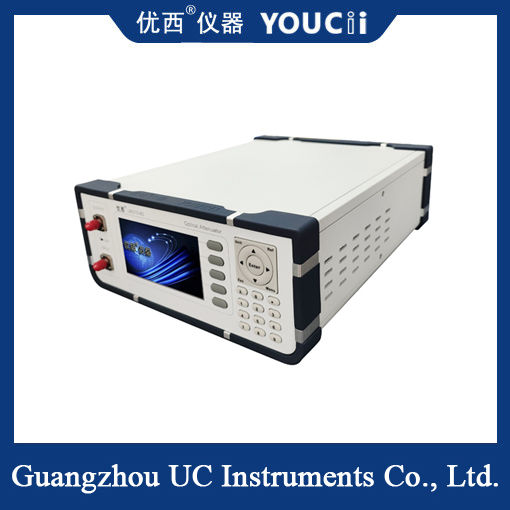

Dual-channel Desktop MEMS Adjustable Optical Attenuator

Dual-channel Desktop MEMS Adjustable Optical Attenuator
Dual-channel Desktop MEMS Adjustable Optical Attenuator

Gambar besar :  Dual-channel Desktop MEMS Adjustable Optical Attenuator

Detail produk:
Tempat asal: Cina
Nama merek: YOUCii
Nomor model: U8310-60
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: negotiate a price
Kemasan rincian: Karton
Waktu pengiriman: 20 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan: 20pcs + per bulan
Kontak

Dual-channel Desktop MEMS Adjustable Optical Attenuator

Deskripsi
Pengulangan: ≤ ± 0,015 dB Kehilangan kembali: ＞ 40 dB
Periode Kalibrasi Ulang: 2 tahun Suhu operasi: 0～ +40℃
Suhu penyimpanan: -30～+80℃ Kekuatan: 100~240 V
Ukuran: 245 mm W, 105 mm H, 320 mm D

Dual-channel Desktop MEMS Adjustable Optical Attenuator


The dual-channel 0-60dB adjustable optical attenuator is a passive optical device integrating dual independent optical path control, which achieves dynamic attenuation of optical power through precise mechanical or electro-optic effects. Its core functions include:
Dual-channel independent regulation
Supports synchronous or asynchronous attenuation of two optical signals, with an attenuation range of 0-60dB, suitable for power balancing in multi-wavelength systems (such as DWDM).
High precision and low loss
Wide wavelength coverage



Model # U8310-40 U8310-60 U8320
Attenuator Range 0 ~ 40 dB 0~60 dB 0~40 dB
Wavelength Range 1310 / 1490 /1550 /1610 nm 850 nm
Insertion Loss ≤ 1.2 dB ≤ 1.8 dB ≤ 1.5 dB
Fiber type Standard SMF MMF 50/62.5 adaptive
Connector Type FC/PC Connector
Attenuator Accuracy ≤ ± 0.1 dB typ. (0 ~ 40 dB) ≤ ± 0.2 dB
Repeatability ≤±0.015 dB ≤±0.05 dB
Attenuation Transition Speed 0.1 ~ 50 dB/s 0.1 ~ 35 dB/s
Polarization Depend Loss ≤0.25 dB (0 ~ 40 dB).
Return Loss ＞ 40 dB ＞ 30 dB
Recalibration Period 2 years
Operation Temperature 0～ +40℃
Storage Temperature -30～+80℃
Power 100~240 V
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 2.0~5.0 kg


Typical application scenarios
Power balancing of DWDM system

Research and development and testing of optical modules

Optical fiber sensing network

Optical amplifier (EDFA) control


Dual-channel Desktop MEMS Adjustable Optical Attenuator 0
